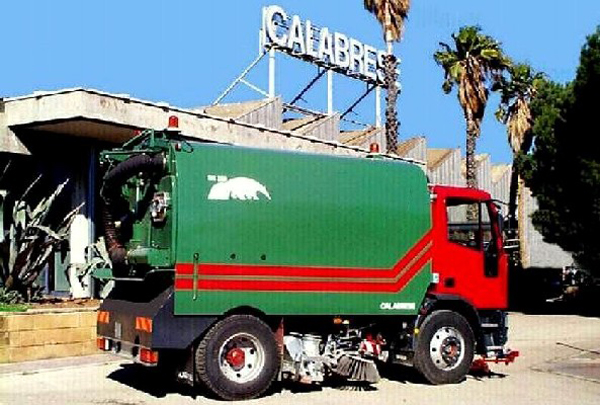

Road sweeper

The SH 250 sweeper is an avant-garde equipment, easy to use, complete and reliable with the following principle features:

  • - tropicalized auxiliary turbo engine 110 HP at 2400 rpm
  • - air recycling system preventing any maintenance problems to the filter elements
  • - wear-proof steel fan having max delivery of 13,000 mc/h driven by auxiliary engine by means of hydrostatic transmission
  • - 6.5 m3 waste container entirely made of stainless steel
  • - side brushes, diameter 750 mm, with replaceable steel strips, provided with a system for regulating pressure to the ground and rotation speed controlled from the cab
  • - central roller (1400 x 400 mm) with replaceable polyamide strips
  • - suction hatch, in wear-proof steel, 150 x 600 mm. Two suction hatches are provided in the version with two brishes
  • - water spray nozzles are arranged as follows: 2 per each side brish, 4 on central roller, 1 per each suction hatch, 5 in front of left-hand or right-hand bar. 7 inside the container
  • - stainless steel 1000 or 1250 lt water tank
  • - the water pump in driven by hydrostatic transmission and has a working pressure of 8 bar and max working pressure of 30 bar with delivery 39 l/min provided with by-pass system in case of water shortage
  • - all lower equipment part in contact with water is galvanized
  • - electric system and engine safety system are controlled by PLC

Opional solutions are: version with double brish (left-hand / right-hand), leaves-suction device, jetting system for road washing, front sraper, equipment silencing.
