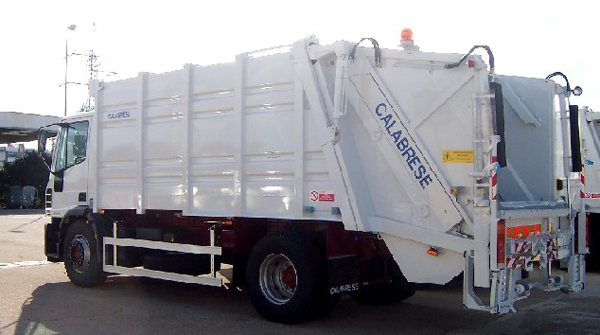

CH405 - Waste packer

This kind of packer assures a high volume range (from 11.5 to 18 m3 ) and a limited tare.
It's assembled on cabs having G.V.W. from 11,550 to 19,000 Kg.
The equipment is made of wear-proof, high yeld-point sheet steel and provided with adequate stiffeners.
The packing system is a self-aligning single-shovel type with a high packing ratio, operated by hydraulic cylinders provided with ball-joints, and it's made up of an articulated built-up shovel, housed in the tailgate and operated by 4 double-acting cylinders.
The trolley cylinders are protected within the same.
The hydraulic system, protected by a safety valve, allows an automatic cycle for the 4 packing stage. Controls are governed by electro-hydraulic distributors (or by PLC on request) operated by an electronic card provided with a check-control device for quick diagnosis.
The following operations are guaranteed: automatic system with single and continuous cycle / manual system with independent phases / reverse cycle with trolley lifting.
The pusher-plate, operated by a double-acting hydraulic cylinder, generates a counter-pressure during loading phase. It slides within special guides on antifriction, self-lubricating blocks.
The equipment is finished with: 2 rotating beacons, rear footboards, liquid restrain panel with drain plug.
For EC countries, it also includes: anti under-run bars, remote control, emergency switches on each tailgate side, exhaust pipe directed upwards, clearance lights.

A large range of optional accessories are also available on request.
