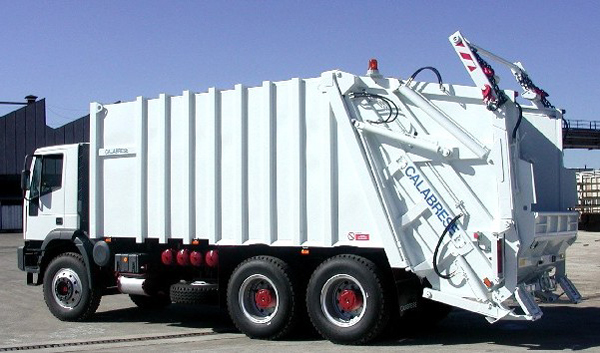

CH403 - Waste packer

This kind of packer assures a high volume range (from 20 to 32 m3 ) and a limited tare.
It's assembled on cabs of 6x2, 6x4 and 8x4 version.
The equipment is made of wear-proof, high yeld-point sheet and provided with adequate stiffeners.
The packing system is a self-aligning single-shovel type with a high packing ratio, operated by hydraulic cylinders provided with ball-joints, and it's made up of an articulated built-up shovel, housed in the tailgate and operated by 4 double-acting cylinders.
The trolley cylinders are protected within the same.
The hydraulic system, protected by a safety valve, allows an automatic cycle for the 4 packing stage. Controls are governed by electro-hydraulic distributors (or by PLC on request) operated by an electronic card provided with a check-control device for quick diagnosis.
The following operations are guaranteed: automatic system with single and continuous cycle / manual system with indipendent phases / reverse cycle with trolley lifting.
The pusher plate, operated by a double-acting hydraulic cylinder, gererates a counter-pressure during loading phase. It slides with special guides on antifriction, self lubricating blocks.
The equipment is finished with: 2 rotating beacons, rear footboards, liquid retrain panel with drain plug.
For EC countries, it alsoincludes: anti under-run bars, remote control, emergency switches on each tailgate side, exhaust pipe directed upwards, clearance lights.

A large range of optional accessories are also available on request.
