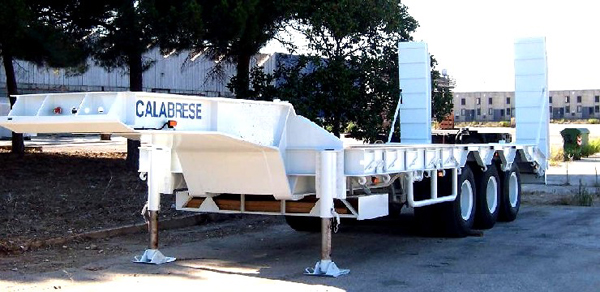

Low bed semitrailer

Frame: made up of two gooseneck shapes cross members in high quality steel with "double-T" shaped section to allow the maximum resistance to torsional stresses also for off-road operations.

Platform: in chequered steel 3+2 mm. thick (upon request also 5+2 mm.). The platform width is of 2500 mm. and, upon request, of 3000 mm.

Loading ramps: with 18° inclination and spring assisted lifting system.

King-pin: 3,5" easly detachable unified type.

Landing legs: gravity tall type (upon request double speed hand operated type).

Suspensions: with centre balanced sturdy leaf springs.

Axles: n.3 with square tubular section (150x150 mm.) each 16 ton. rated.

Braking system: two line pneumatic braking system in line with the EC regulations. Mechanical parking brake with manual drive.

Tyres and wheels: spokee or disc wheels with 8.0" or 8,5" rims for tyres size 12.00x20".

Electrical system: standard construction according to EC regulations.

Standard outfits: spare wheel holder, toolbox with standard wheel tools.

Outfits on request: sand collecting plates with relevant holding structure, 100 litres drinking water tank, load fastening chains.
