Combined equipment

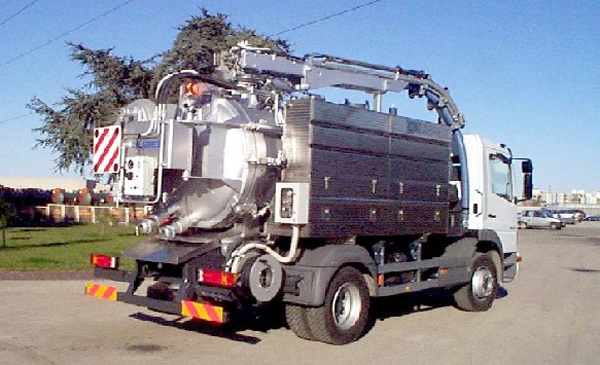

The combined cleaner, as a single vehicle, alloes an alternative use as cesspit emptier (vacuum) or jetting unit (with pressure washing).
The tank, circular-shaped with semi-spherical heads, is provided with a compartment for clean water and one for waste water and can be made of carbon steel or stainless steel.
A flexble hose located on the hydraulic reel carries-out sewage cleaning, under the force of a high pressure pump, it unwinds and proceeds inside the ducts removing any obstacle thanks to the dynamic water jet emitted from an appropriate terminal nozzle. At the end of the cleaning operation the hose automatically rewinds onto the reel.

Mud suctio, instead, is performed by vacuum, created inside the appropriate compartment of the tank, thanks to a rotary vane decompressor having a capacity suitable to fit the cab features and the demanded performance.
The equipment is completed with an inspection manhole for clean water compartment, inner baffle plates, overflow, maximum pressure and safety valves, level indicators, outside control panel, filter systems, main hydraulic reel that can be pivoted 180° and locking system holding 80 m. of 3/4" or 1" hose, rotating beacons, hose carriers and 2 sets of hoses with section 100 mm. fittings.

Optional outfits: auxiliary hand reel, various controls, mud compartment inner flux system, hydraulic tailgate opening, upper rotary hydraulic suction trunk, lobe pump, increased discharges, vice, grid hose-guides, different kinds of nozzled and nozzle-holders.
